RØDE PINMIC

Описание

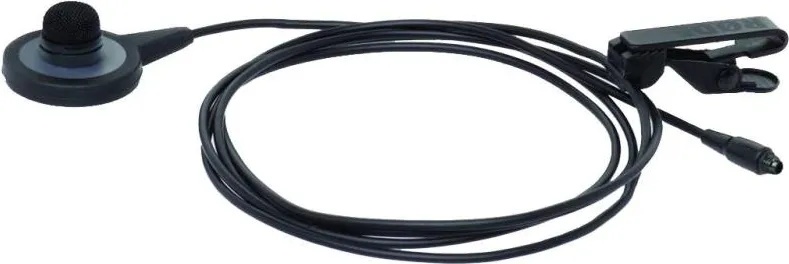

The RØDE PinMic is a discreet lavalier/lapel microphone with an innovative pin-through design that is not only easier to conceal than a traditional lapel microphone, but provides greater mounting versatility.

Comprised of a cabled backplate and a removable omni-directional capsule head, the PinMic is easily mounted onto any clothing or fabric by simply pushing the backplate pins through the back of the fabric and sliding the capsule into place on the front. The microphone backplate and cable are hidden behind the fabric, and the capsule head can be easily disguised, covered or decorated to further conceal the microphone.

The PinMic capsule is discrete at only 9mm deep and 11mm in diameter, and is supplied with both a black and an unpainted silver mesh head that can be further camouflaged by painting.

The microphone easily mounts through any fabric up to 1.5mm (0.006") thick without any damage to clothing. A longer pin version (PinMic-Long) is available for mounting on thicker fabrics (up to 3.5mm/0.14" thick).

The microphone capsule is connected via a 1.2m (4') shielded, detachable Kevlar® reinforced cable that has been rigorously strain tested to ensure reliable performance.

The included mini-furry for high wind protection ensures quality recordings in adverse environments, while the anti-trauma water resistant case provides rugged and secure protection for the microphone, a spare capsule head, the microphone cable and included accessories.

The PinMic is an ideal solution for film, television, video, theatre, house of worship and anywhere where a high quality microphone needs to be heard but not seen.

Knowing that versatility is paramount in any product, RØDE has developed the MiCon connector system which provides seamless integration between the PinMic and a wide range of wireless systems as well as consoles, cameras and portable recorders.

The RØDE PinMic lapel microphone is designed and made in Australia and is covered by RØDE Microphones' innovative 5 year 'no questions asked' warranty which provides 12 months of complete cover, and an optional US$99 replacement microphone during the extended warranty period.

 PinMic SpecificationsAcoustic PrinciplePermanently PolarizedActive ElectronicsJFET impedance converterCapsule0.10"Polar PatternAddress TypeEndFrequency Range60Hz - 18kHzOutput Impedance3000Maximum SPL110dBSPLMaximum Output Level189.0mV (@ 1kHz, 1% THD into 1K load)Sensitivity-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHzEquivalent Noise Level (A-weighted)25dBAPower OptionsWeight10.00gDimensions16.00mmH x 22.00mmW x 33.00mmDOutputWarranty1 year with free extension to 5 years following registration here Спецификации

• Intuitive And Subtle
• Omni-directional polar pattern
• Removable Mesh Head
• Ultra Discreet Appearance
• Lightweight And Easy To Position
• High Quality Performance
• Low Noise Miniature Microphone Capsule
• Low Handling Noise
• Universal Compatibility
• RØDE Micon interconnectivity system provides seamless integration with a wide range of wireless systems
• Includes mini-furry, anti-trauma case, spare capsule and PinMic tool kit
• Five year extended warranty when you register your microphone

Видео



Още

Допълнитела информация

Документи за сваляне и драйвери

• User Manual
• Datasheet

В кутията

• PinMic (1.5mm pins) - Discreet Pin-through Lapel Microphone
• Clip1 - MiCon Cable Management Clip
• Unpainted Mesh Head
• Anti-Trauma Case
• Tool Kit - Tool Kit for PinMic
• DeadMouse-Pin

Гаранция

2 години по ЗЗП, 10 години (след регистрация на rode. com)

За производителя

Røde Microphones е австралийска компания, създадена още през 1967 година, но под името Freedman Electronics. Тя е специализирана в производството на микрофони, аксесоари и музикален софтуер, които се използват предимно в студиа, концерти и в броудкаст индустрията. Хората, които изпозват продуктите на Rode характеризират марката с чист тон, топлота на звука, изтински, надеждни.

Røde Microphones са носители на редица награди, последната е за продукта им VideoMic Pro, той e носител на престижната награда за най-добър дизайн, от комисия с представители на BMW, Samsung, Mercedes-Benz на Australian International Design Awards. Røde Microphones са истински професионалисти във всеки аспект, освен прецизния и солиден дизайн, получавате 10 годишна гаранция (за някои продукти) ако се регистрирате в техния сайт, че сте закупили съответния продукт.

Røde се произвеждат и сглобяват в Австралия.
