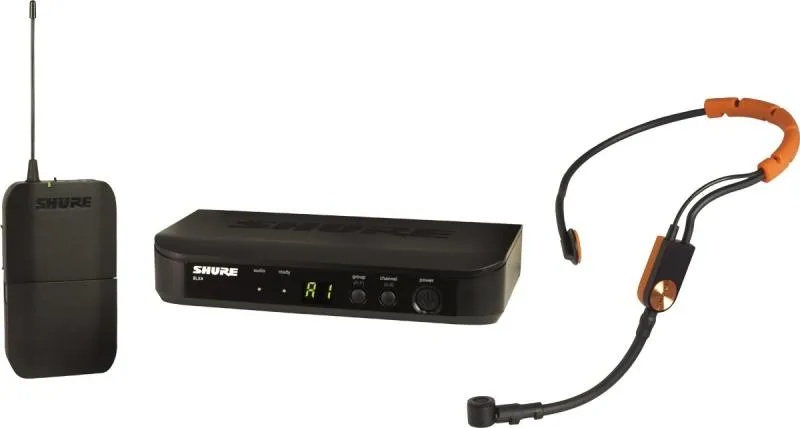

BLX14E/SM31 - безжична система с микрофон за глава (headset) с PG30, подходяща за инструктори по аеробика, пеещи танцьори, вокалисти.

Включва: SM31FH "хедсет" кондензаторен микрофон за глава, кардиоид, BLX1 бодипак трансмитер, BLX4 единичен приемник, захранване, 2 AA батерии.

SM31FH-TQG     Headset Condenser Microphone for use with PG and PGX Wireless Systems.
BLX1     Up to 14 hours of continuous use with 2 AA batteries. 300 ft (100 m) transmission radius.
BLX4     Single channel wireless receiver with microprocessor-controlled internal antenna diversity.

SYSTEM TECHNICAL SPECIFICATIONS
Compatible systems per frequency band (up to): 12
Selectable frequencies: 150
Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
Audio Reference Companding: No
Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
Antenna Options: No
Receiver Network Ability: No
PC Control: No
Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
Case: No
Transmitter Display: LED
Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
Battery, Endurance: 2AA, up to 14h
Environment: Small to medium stages
FURTHER TECHNICAL SPECS
Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
Available Frequencies: Between 524-865 MHz (available frequencies depend on applicable regulations in country where system used)
Audio Range: 50-15,000 Hz (dependent on microphone type)
Transmitter RF Output Power: 10 mW, typical (varies by region)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
Battery Life: Up to 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range: -18°C (0°F) - +50°C (122°F)
Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX88: 12-18 V DC at 320 mA, supplied by external power supply
COMPONENT SPECIFICATIONS:
BLX88 DUAL RECEIVER
Output Impedance:
- XLR connector: 200
- 6.35 mm (1/4") connector: 50
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector -27 dBV (into 100 k load)
- 6.35 mm (1/4") connector -13 dBV (into 100 k load)
RF Sensitivity: 105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 40 mm X 388 mm X 116 mm (H x W x D)
Weight: BLX88 429 g
Housing: Molded ABS
Power Requirements: 12-15 V DC @ 320 mA, supplied by external power supply (tip positive)
BLX2 HANDHELD TRANSMITTER
Audio Input Level
- gain 0dB: -20 dBV maximum
- gain -10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
RF Transmitter Output: 10 mW, typical, varies by region
Dimensions: 224 mm X 53 mm dia.
Weight: 218 g (without batteries)
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
BLX1 BODYPACK TRANSMITTER
Audio Input Level:
- gain max: -16 dBV maximum
- gain min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 M
RF Transmitter Output: 10 mW, typical, varies by region
Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
Weight: 75 g, without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
